CPC(D)35 · 3.5 t
Diesel Forklift 3.5 t
3.5 t. Bought for container stripping where the load is dense and the floor is concrete.
Compare CPC(D)40Q vs CPC(D)35
CPC(D)40Q · Diesel Forklift
CPC(D)40Q — 3.8 t Diesel Forklift
3.8 t on the 4 t frame. Bought when a 3.5 t truck is marginal but a full 4 t is more counterweight than the floor will take.
3.8 t
Capacity
Yunnei 4JB1, 45 kW, Stage V
Engine
3,000 mm standard; 4,500 / 6,000 mm optional
Lift height
2922 mm
Turning radius
40Q/01-yard.webp)

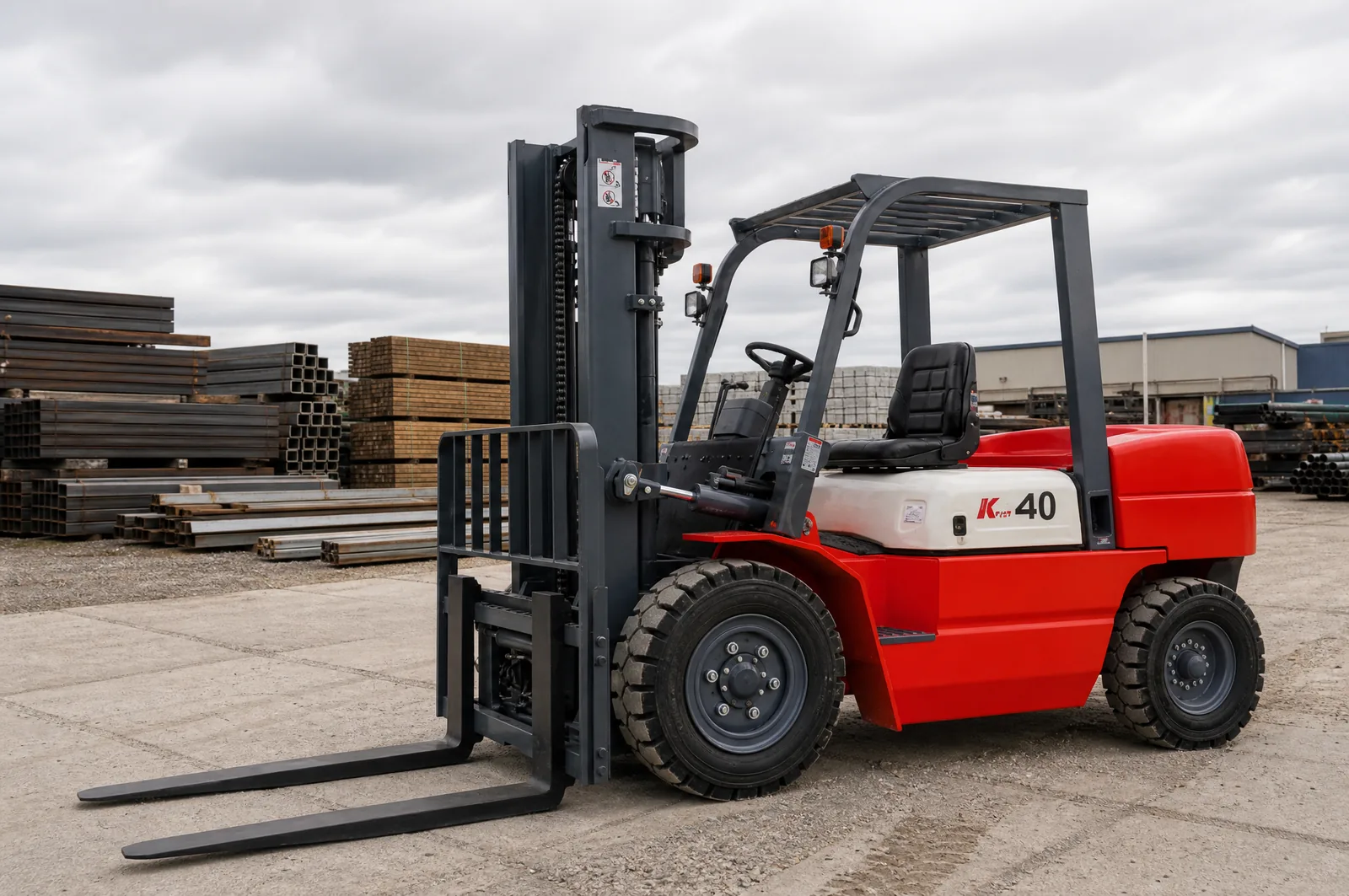

CPC(D)40Q in service. More photographs below.
CPC(D)40Q in service

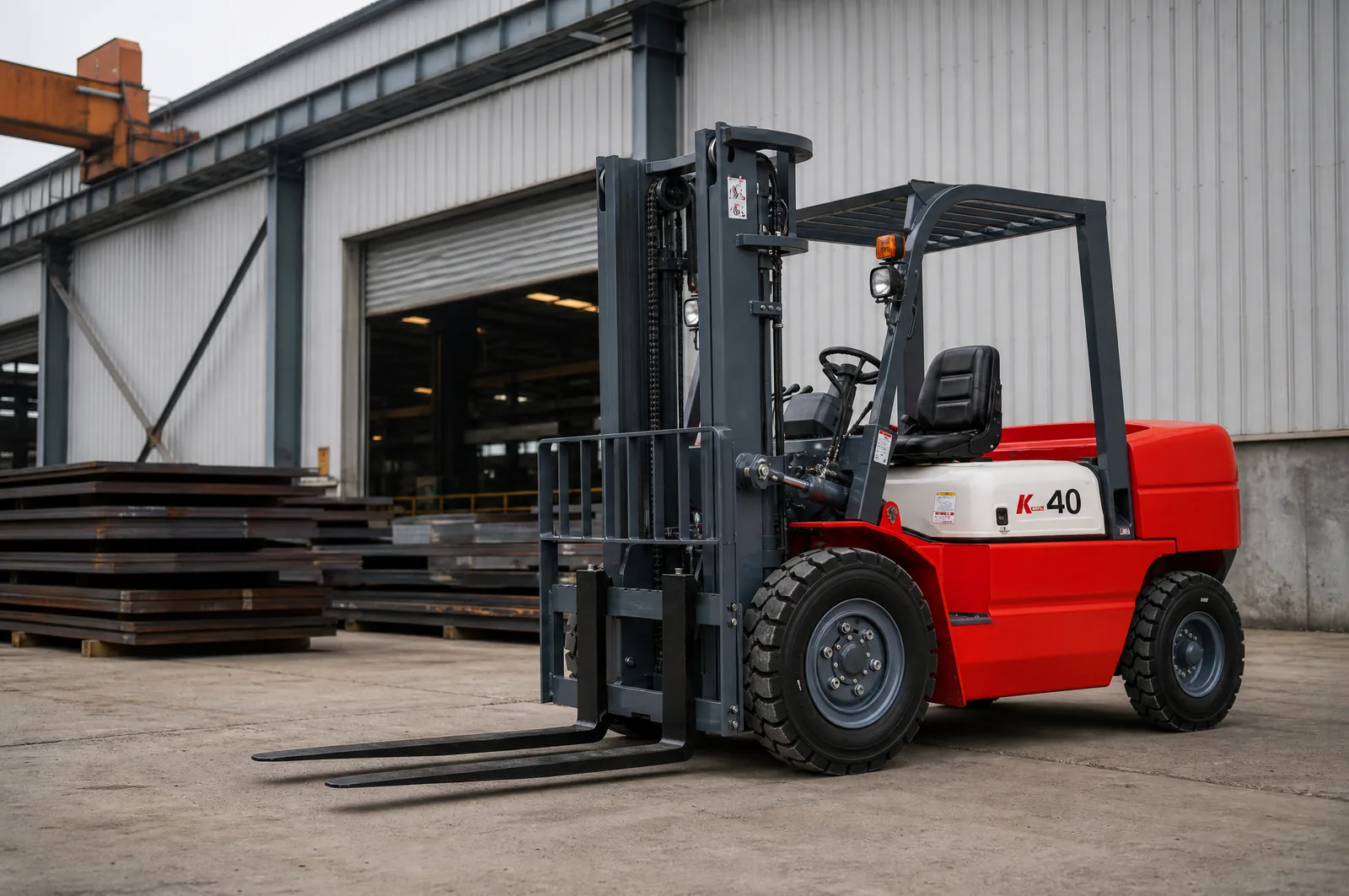

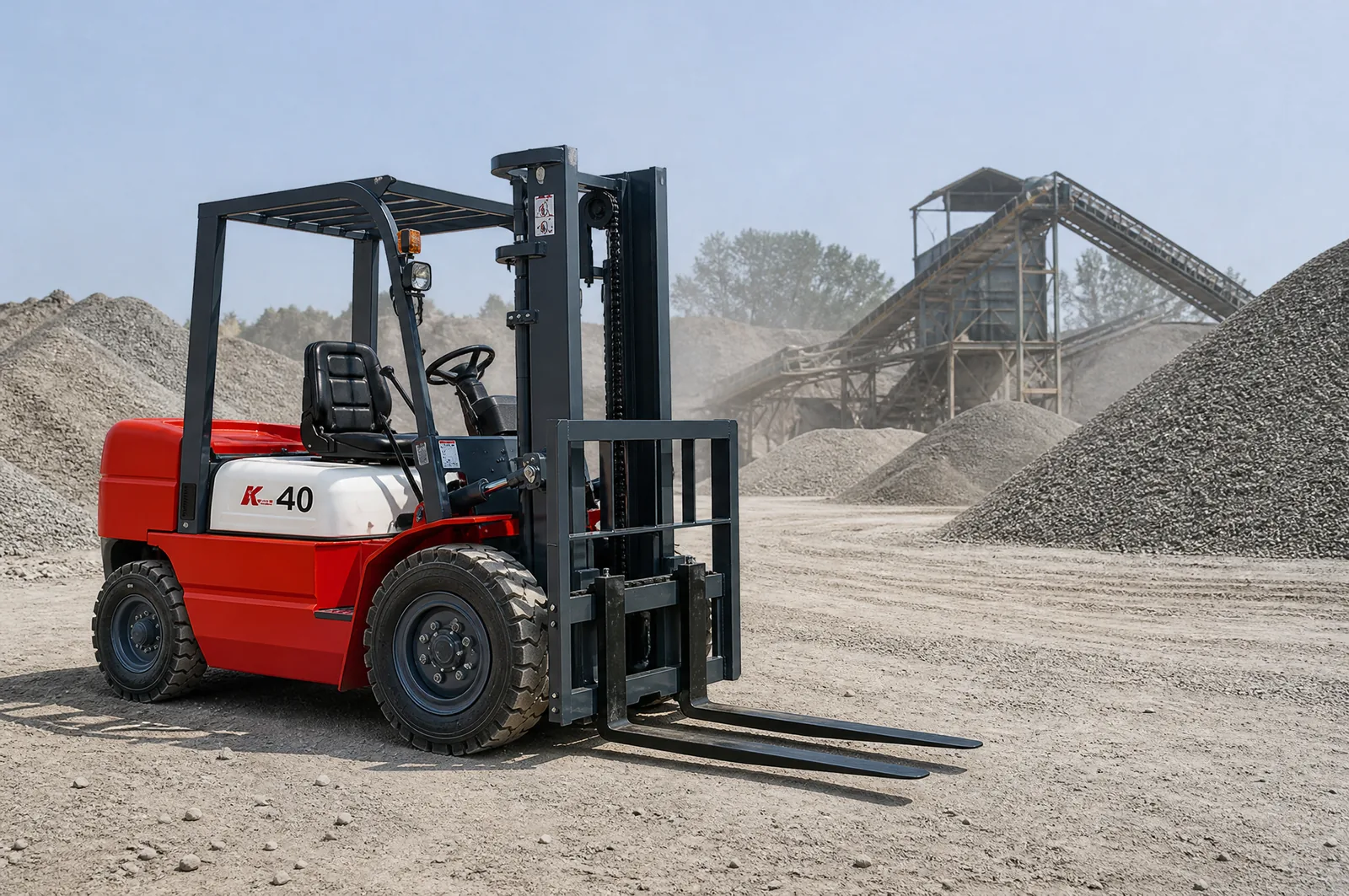

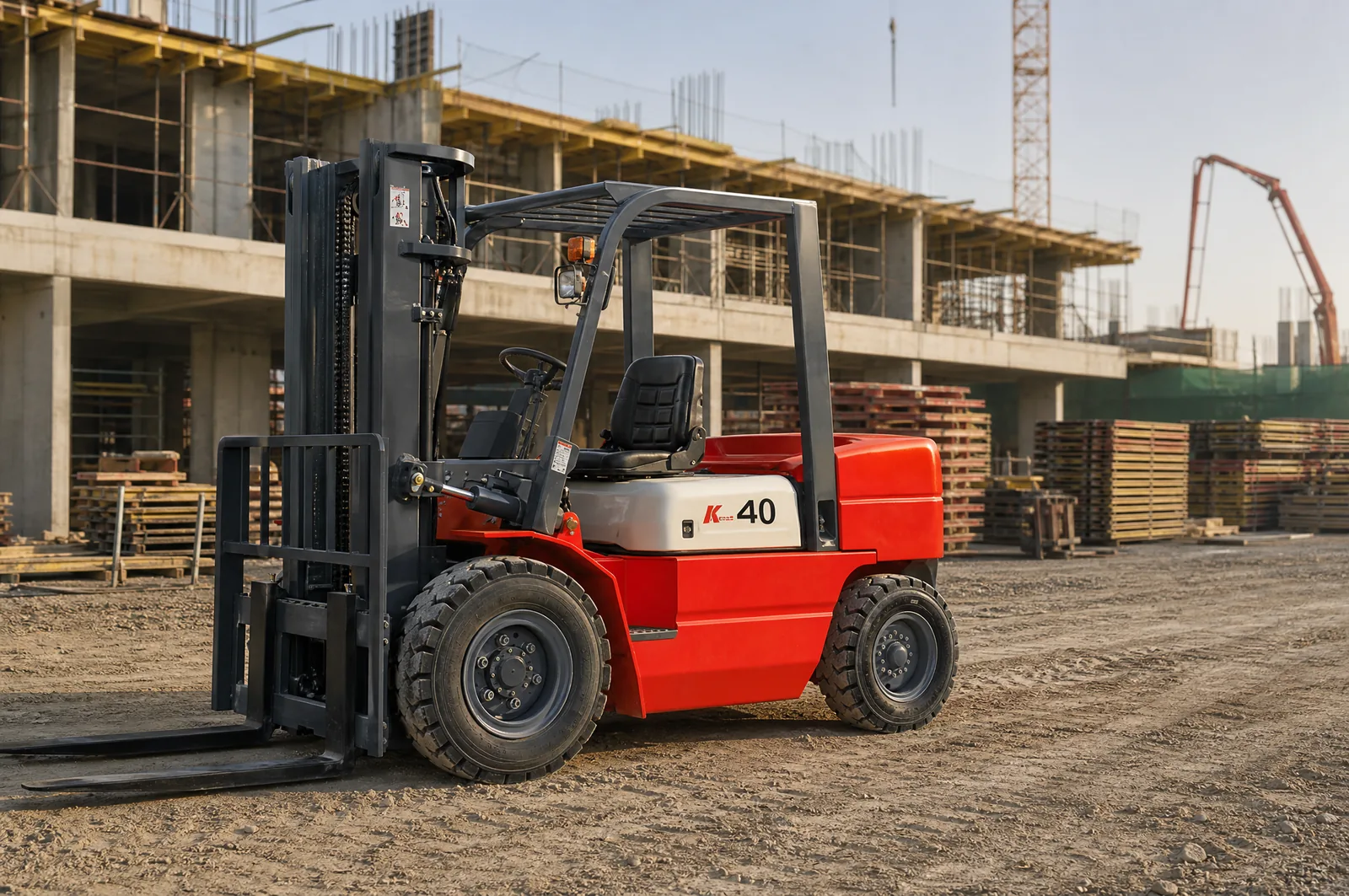

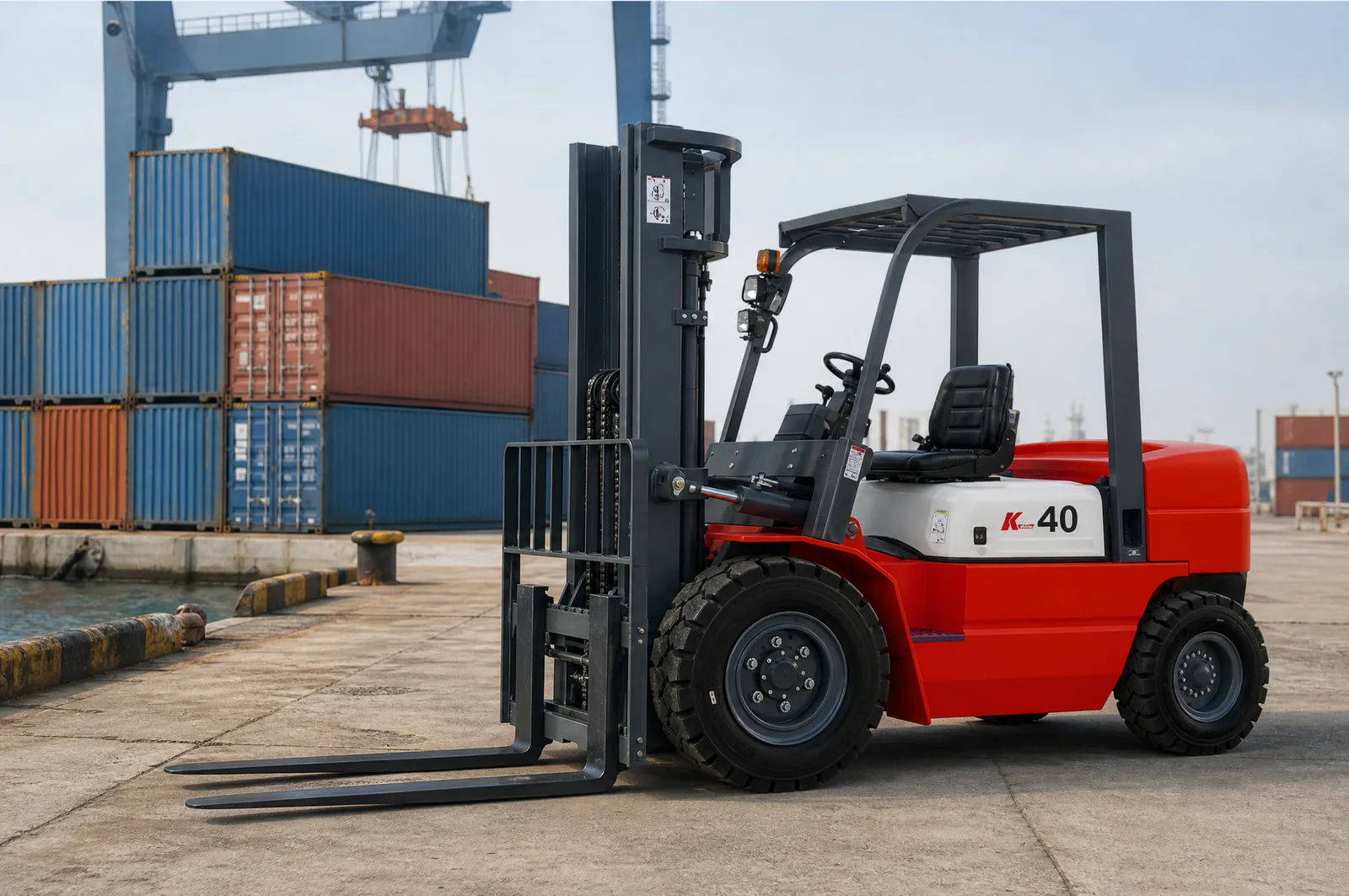

Representative environments for this class of machine. Photographed on location, not in a studio.
40Q/02-port.webp)
40Q/03-construction.webp)
40Q/04-factory.webp)
40Q/05-quarry.webp)
Specification
| Model | CPC(D)40Q |
|---|---|
| Standard designation | CPC(D)-40Q |
| Rated capacity | 3.8 t |
| Lift height | 3,000 mm standard; 4,500 / 6,000 mm optional |
| Service weight | 5766 kg |
| Engine | Yunnei 4JB1, 45 kW, Stage V |
| Tyres | Pneumatic 8.25-15 (front) / 7.00-12 (rear) |
| Turning radius | 2922 mm |
| Length | 4322 mm to fork face |
| Width | 1330 mm |
Figures are the standard build. Mast, fork length, attachment, battery and paint are fixed at order; anything not on this table is quoted rather than assumed.
What CPC(D)40Q is bought for
3.8 t on the 4 t frame. Bought when a 3.5 t truck is marginal but a full 4 t is more counterweight than the floor will take.
If the load is consistently heavier than 3.8 t, the next frame up carries the same mast and fork family, so the attachment and spare-parts stock do not have to change. If the load is lighter but the access is the constraint, the frame below is the one that fits through the door — capacity is rarely the only variable.
The size above and below
CPC(D)40 · 4 t
Diesel Forklift 4 t
4.0 t. The frame shared with the electric 4.0 t, which matters for fleets that run both and want one spare-parts stock.
Compare CPC(D)40Q vs CPC(D)40Wear parts for CPC(D)40Q
The parts that fail first on this class, with the interval we see in the field.
Customer feedback
We publish feedback only with the buyer's permission and only when it is attributable — no anonymous quotes. If you would like to speak to someone running this class of machine, ask for a reference and we will arrange the call with their consent.
Quote for CPC(D)40Q
Send the load, the lift height and the destination port. You get the model, the mast, the attachment and a written price.
