MS-40 · 4 t
Electric Forklift 4 t
Four-wheel, 4.0 t. Steps into the frame size shared with the diesel line, so masts and forks are common across both.
Compare MS-50 vs MS-40

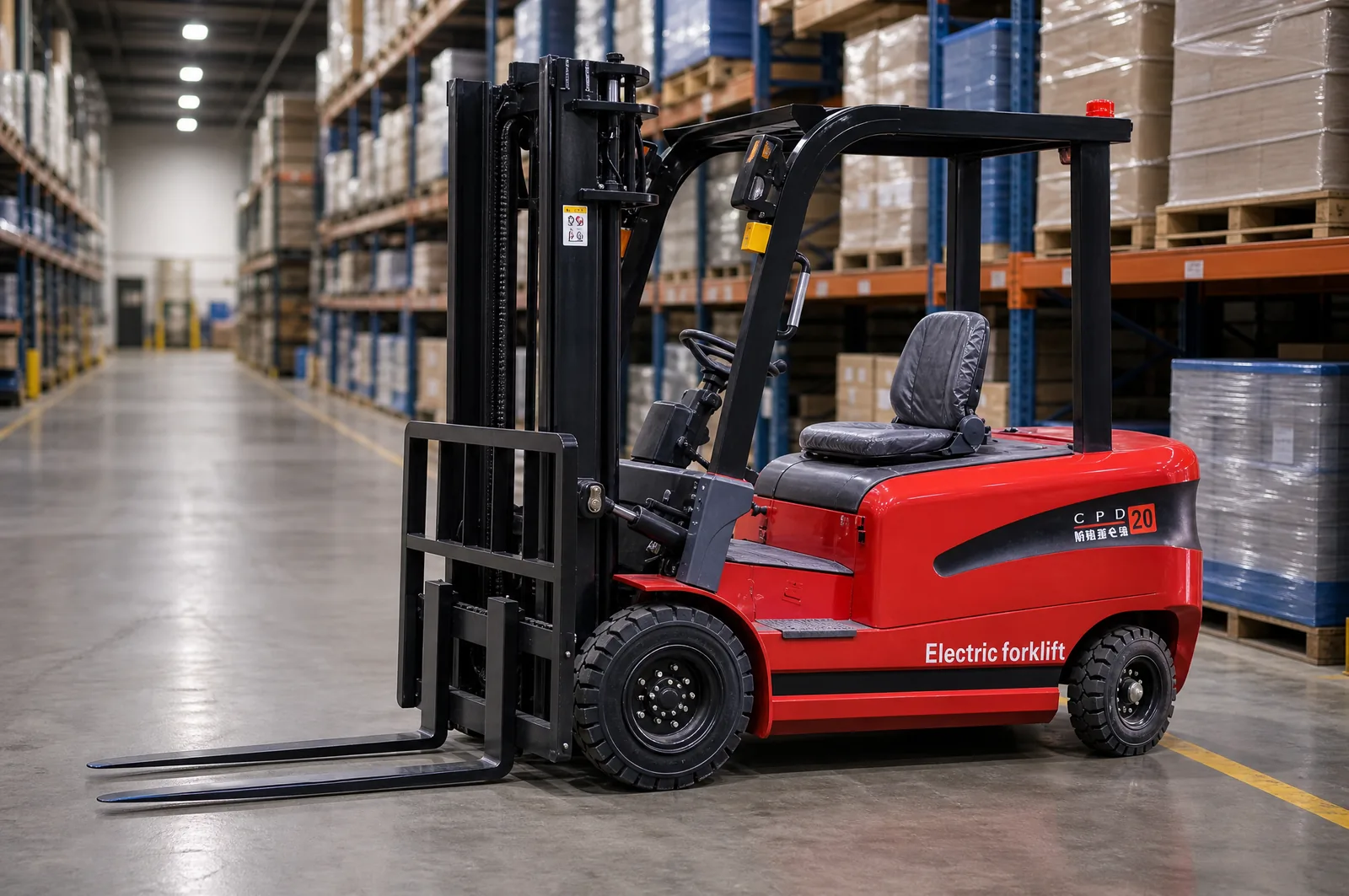

MS-50 · Electric Forklift
MS-50 — 5 t Electric Forklift
Four-wheel, 5.0 t. The top of the electric range. Bought where diesel is banned indoors but the load is still five tonnes.
5 t
Capacity
80 V / 500 Ah lead-acid or 80 V 400 Ah Li-ion
Battery
3,000 mm standard; 4,500 / 6,000 mm optional
Lift height
2570 mm
Turning radius

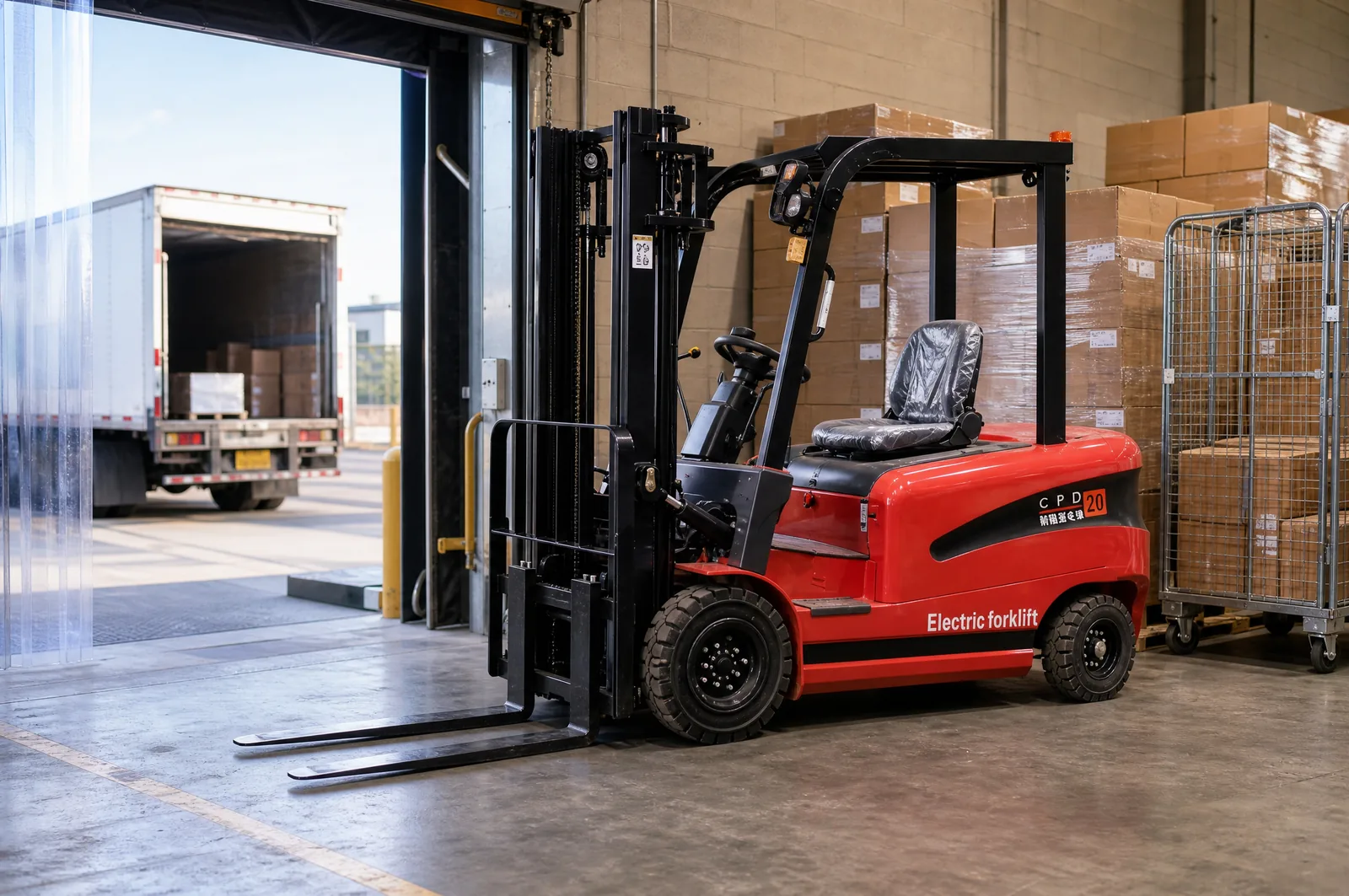

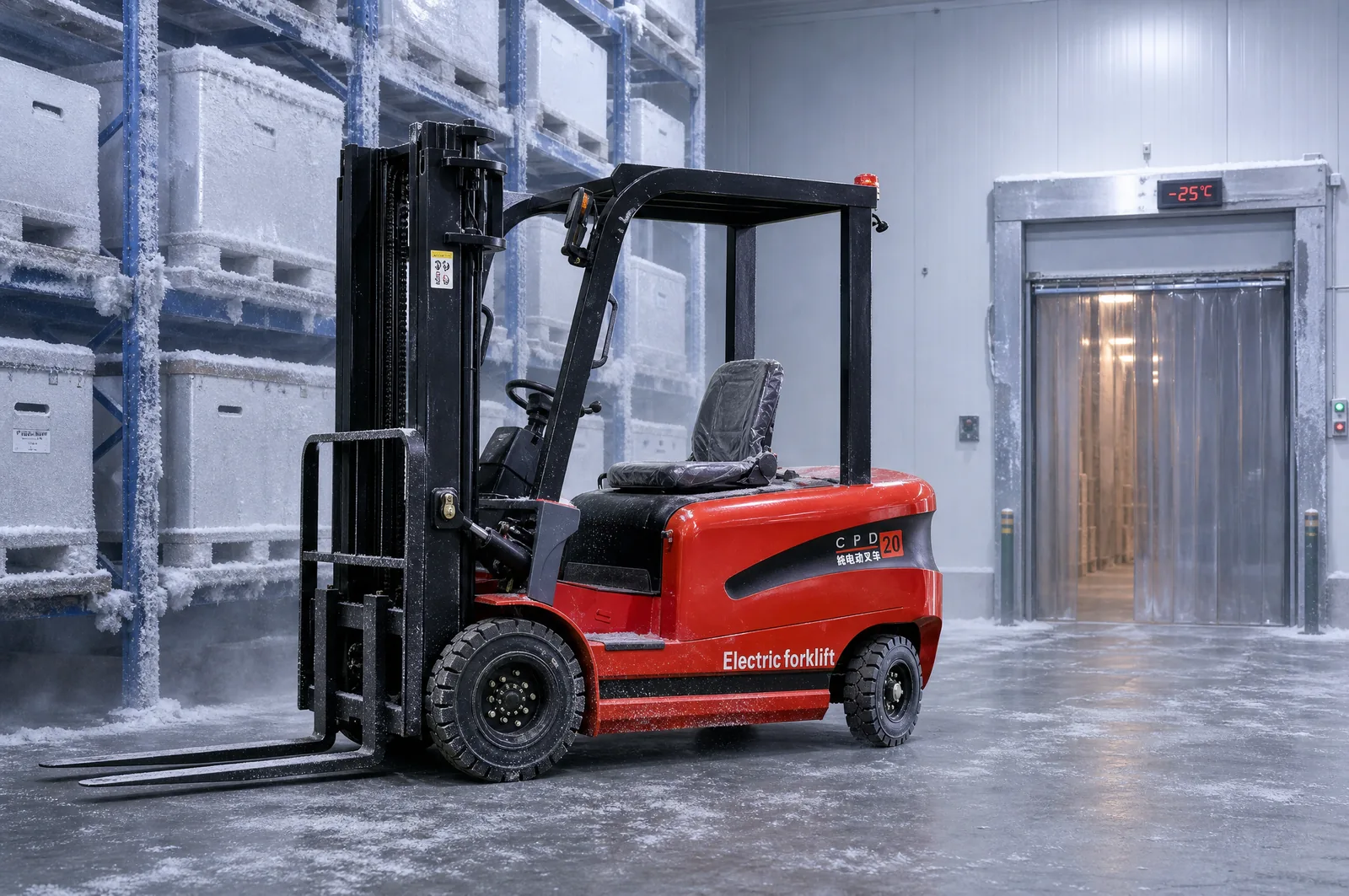

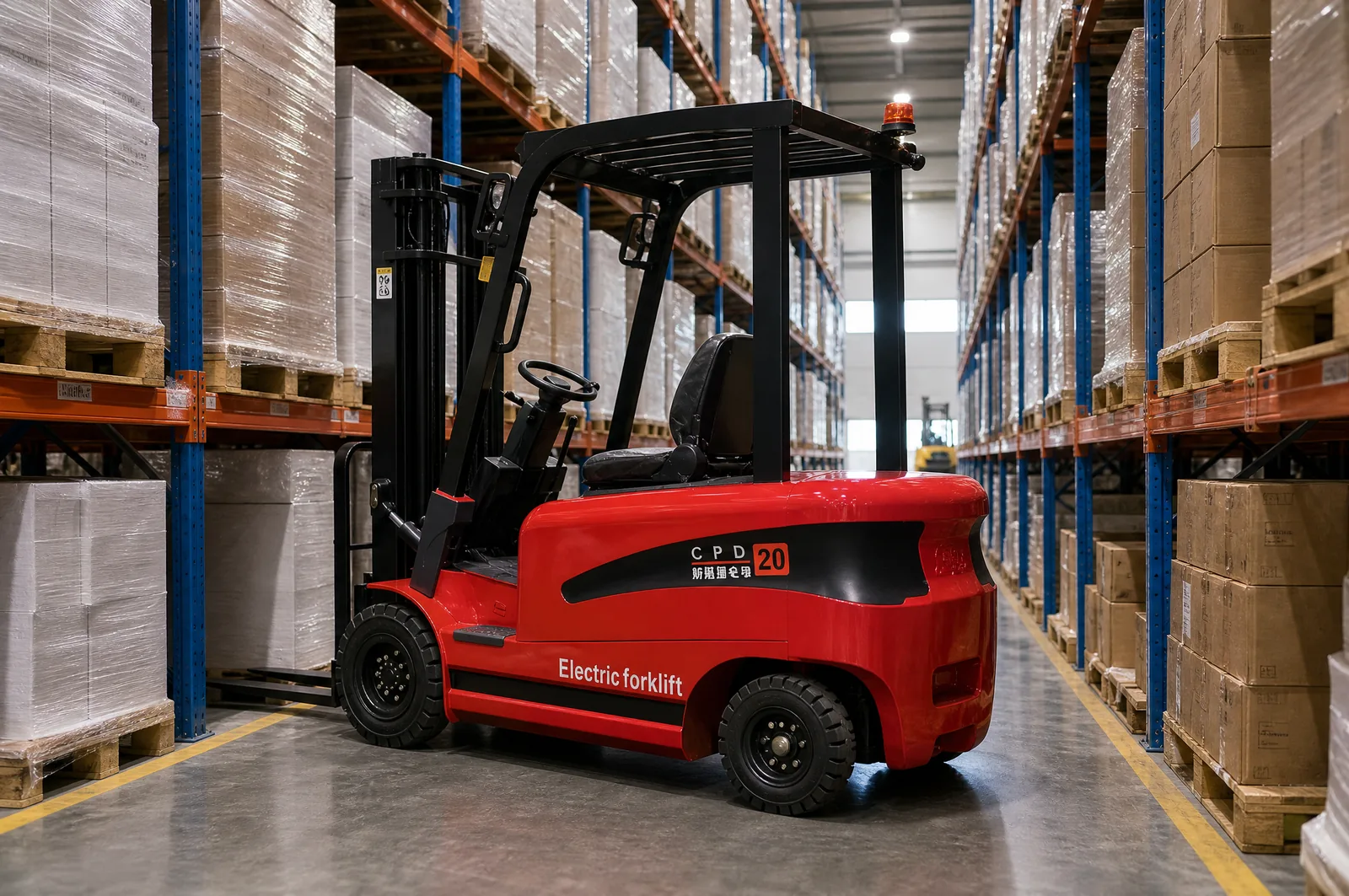

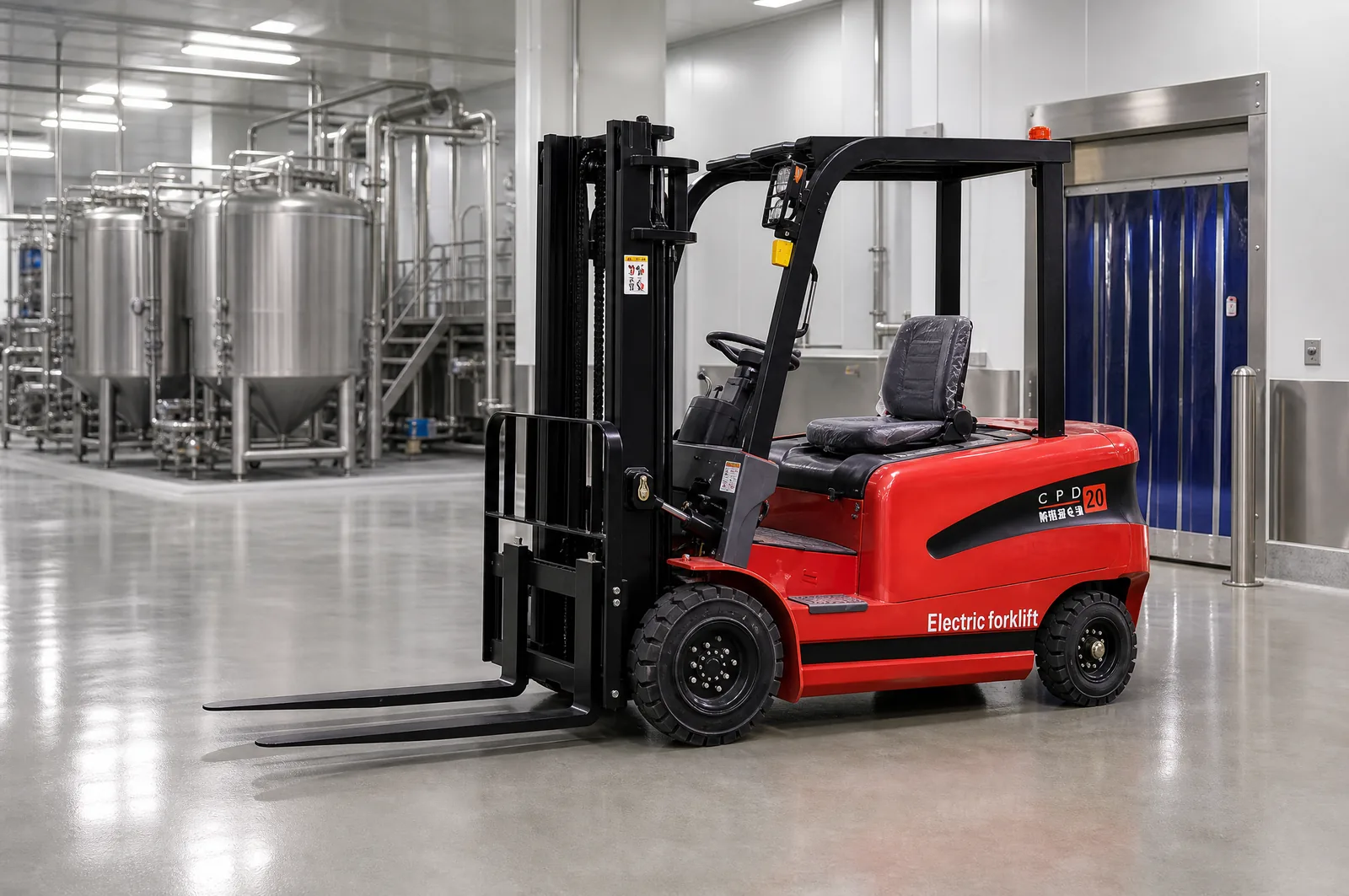

MS-50 in service. More photographs below.
MS-50 in service
Representative environments for this class of machine. Photographed on location, not in a studio.
Specification
| Model | MS-50 |
|---|---|
| Standard designation | CPD-50 |
| Rated capacity | 5.0 t |
| Lift height | 3,000 mm standard; 4,500 / 6,000 mm optional |
| Service weight | 5750 kg |
| Battery | 80 V / 500 Ah lead-acid or 80 V 400 Ah Li-ion |
| Tyres | Solid rubber 28×9-15 (front) / 6.50-10 (rear) |
| Turning radius | 2570 mm |
| Length | 4000 mm to fork face |
| Width | 1230 mm |
Figures are the standard build. Mast, fork length, attachment, battery and paint are fixed at order; anything not on this table is quoted rather than assumed.
What MS-50 is bought for
Four-wheel, 5.0 t. The top of the electric range. Bought where diesel is banned indoors but the load is still five tonnes.
If the load is consistently heavier than 5 t, the next frame up carries the same mast and fork family, so the attachment and spare-parts stock do not have to change. If the load is lighter but the access is the constraint, the frame below is the one that fits through the door — capacity is rarely the only variable.
The size above and below
Wear parts for MS-50
The parts that fail first on this class, with the interval we see in the field.
Customer feedback
We publish feedback only with the buyer's permission and only when it is attributable — no anonymous quotes. If you would like to speak to someone running this class of machine, ask for a reference and we will arrange the call with their consent.
Quote for MS-50
Send the load, the lift height and the destination port. You get the model, the mast, the attachment and a written price.
