MS-20 · 2 t
Electric Forklift 2 t
Four-wheel, 2.0 t. The specification most cold stores and food plants settle on: enough capacity for a double-stacked pallet, small enough for a 3.5 m aisle.
Compare MS-25 vs MS-20
MS-25 · Electric Forklift

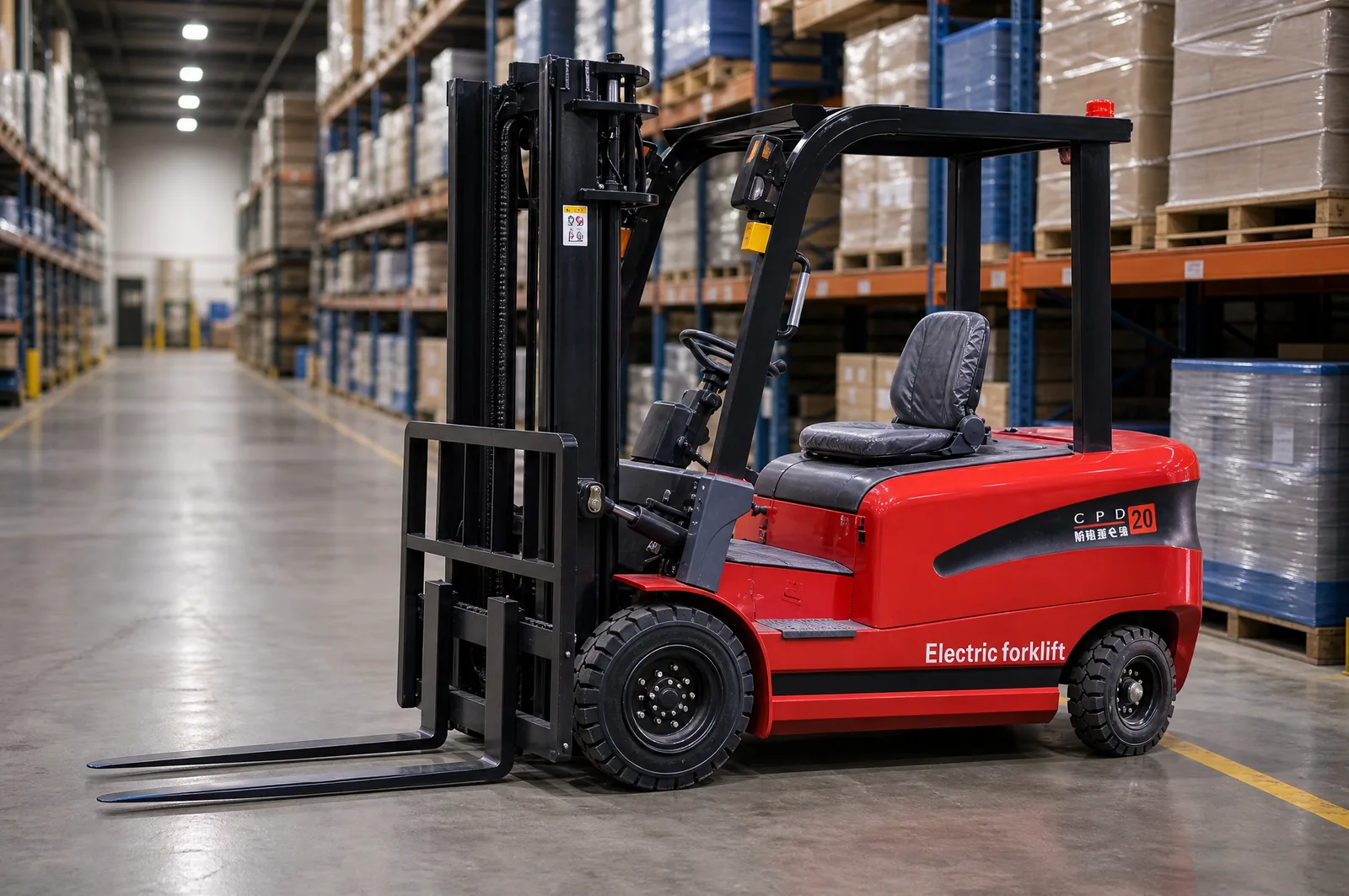

MS-25 — 2.5 t Electric Forklift
Four-wheel, 2.5 t. For loads that sit between pallet and stillage. Frequently chosen where a 2.0 t truck is marginal on residual capacity at height.
2.5 t
Capacity
48 V / 600 Ah lead-acid or 48 V 400 Ah Li-ion
Battery
3,000 mm standard; 4,500 / 6,000 mm optional
Lift height
2095 mm
Turning radius
MS-25 in service. More photographs below.

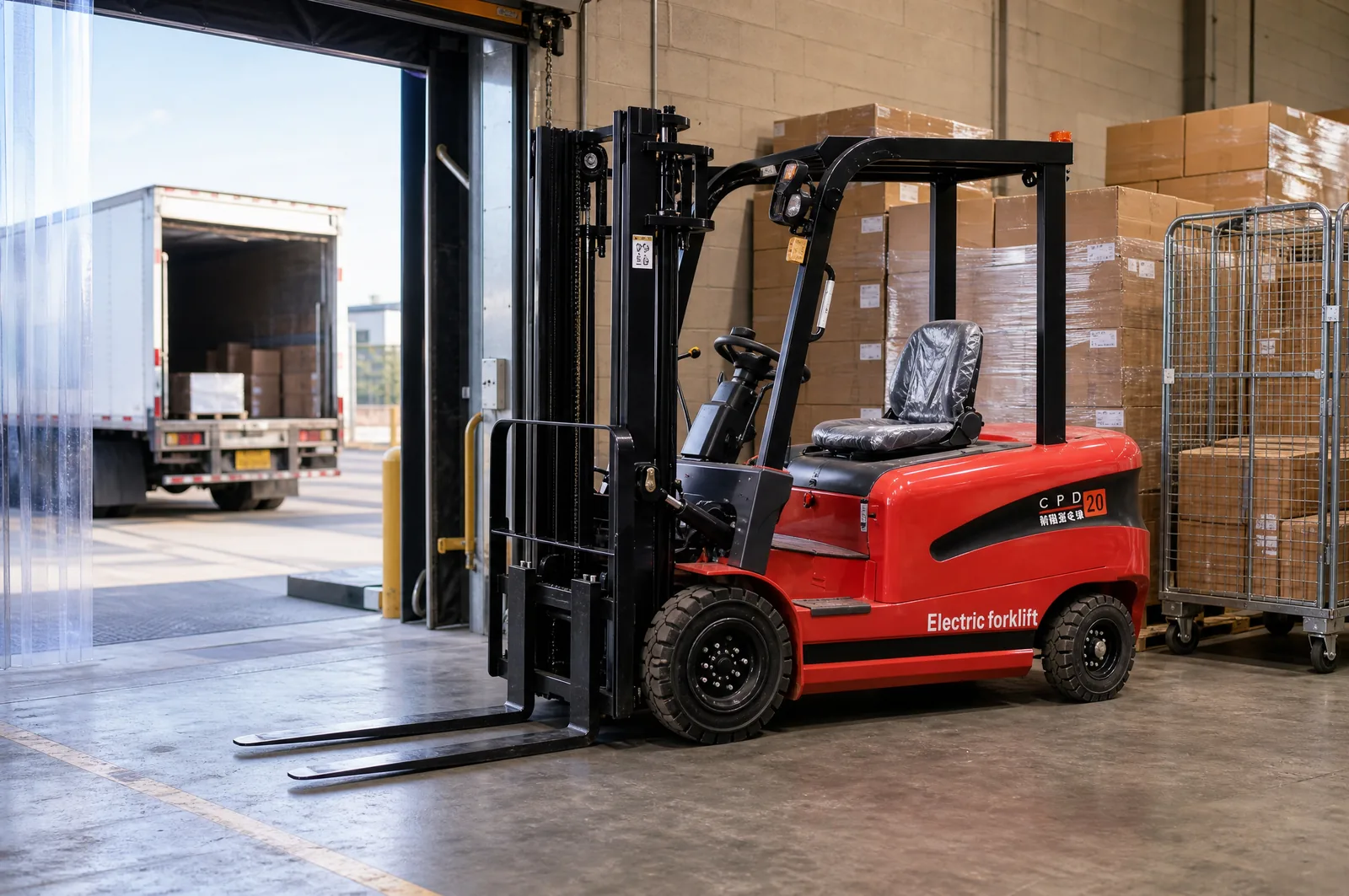

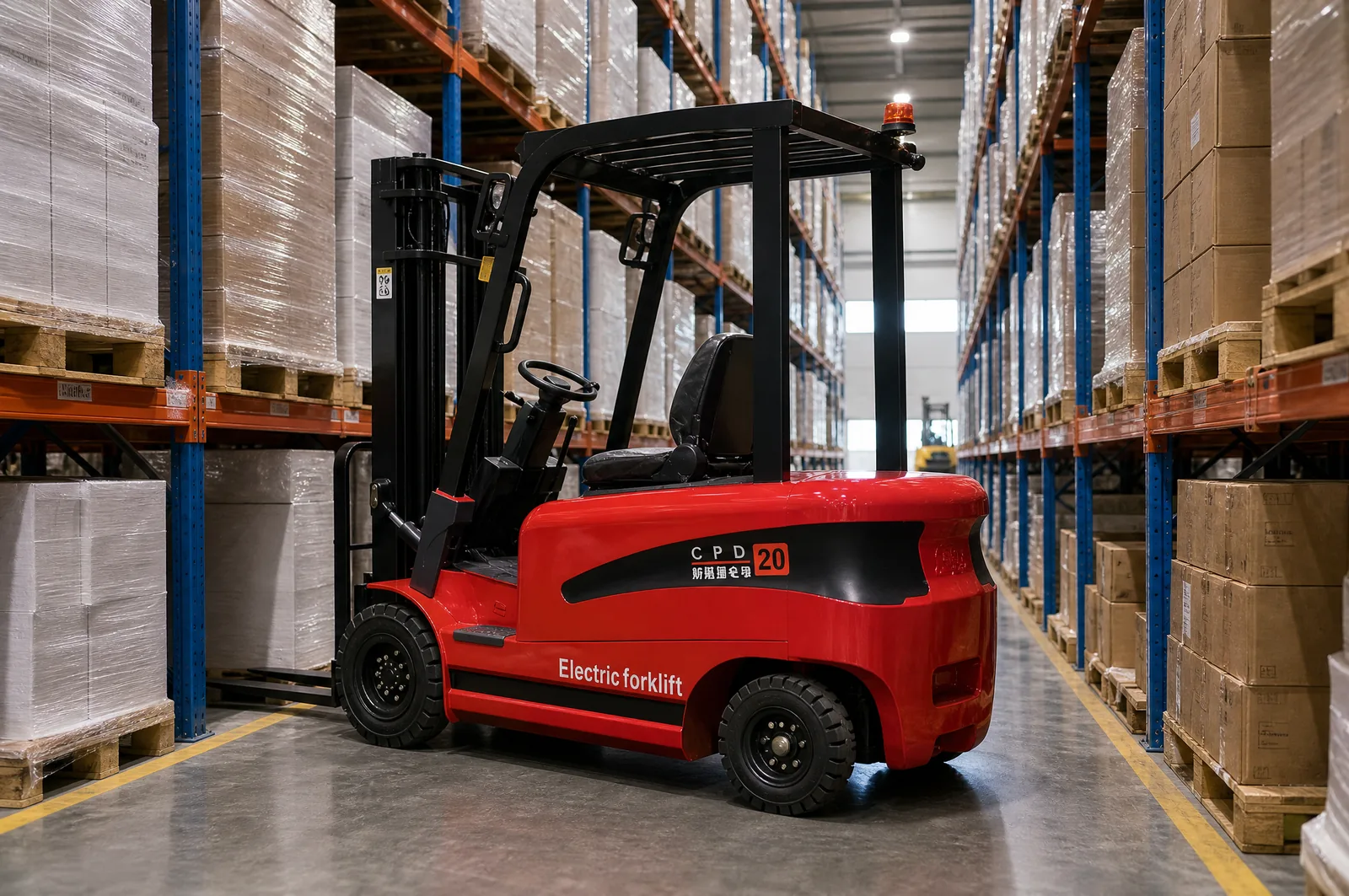

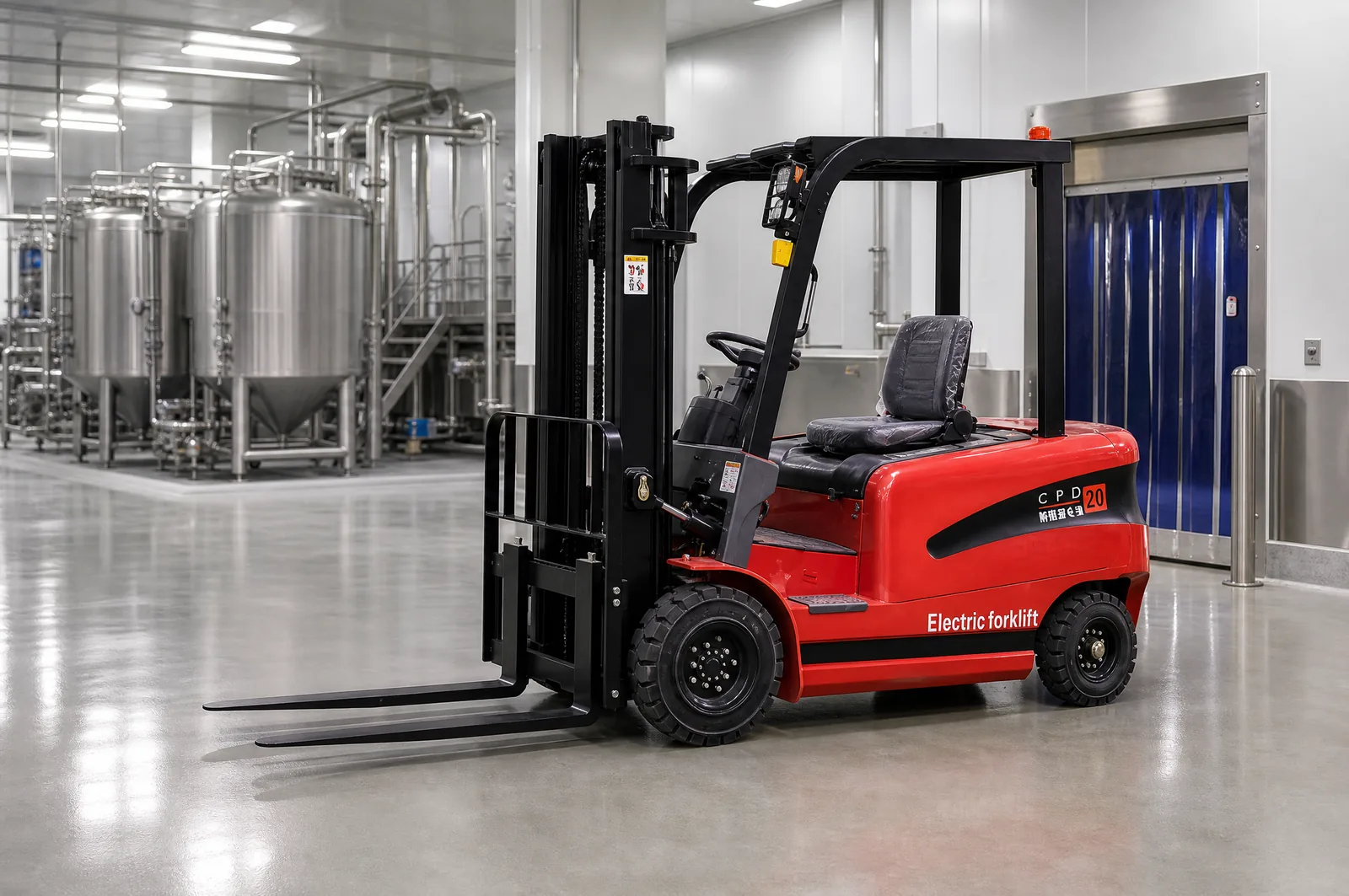

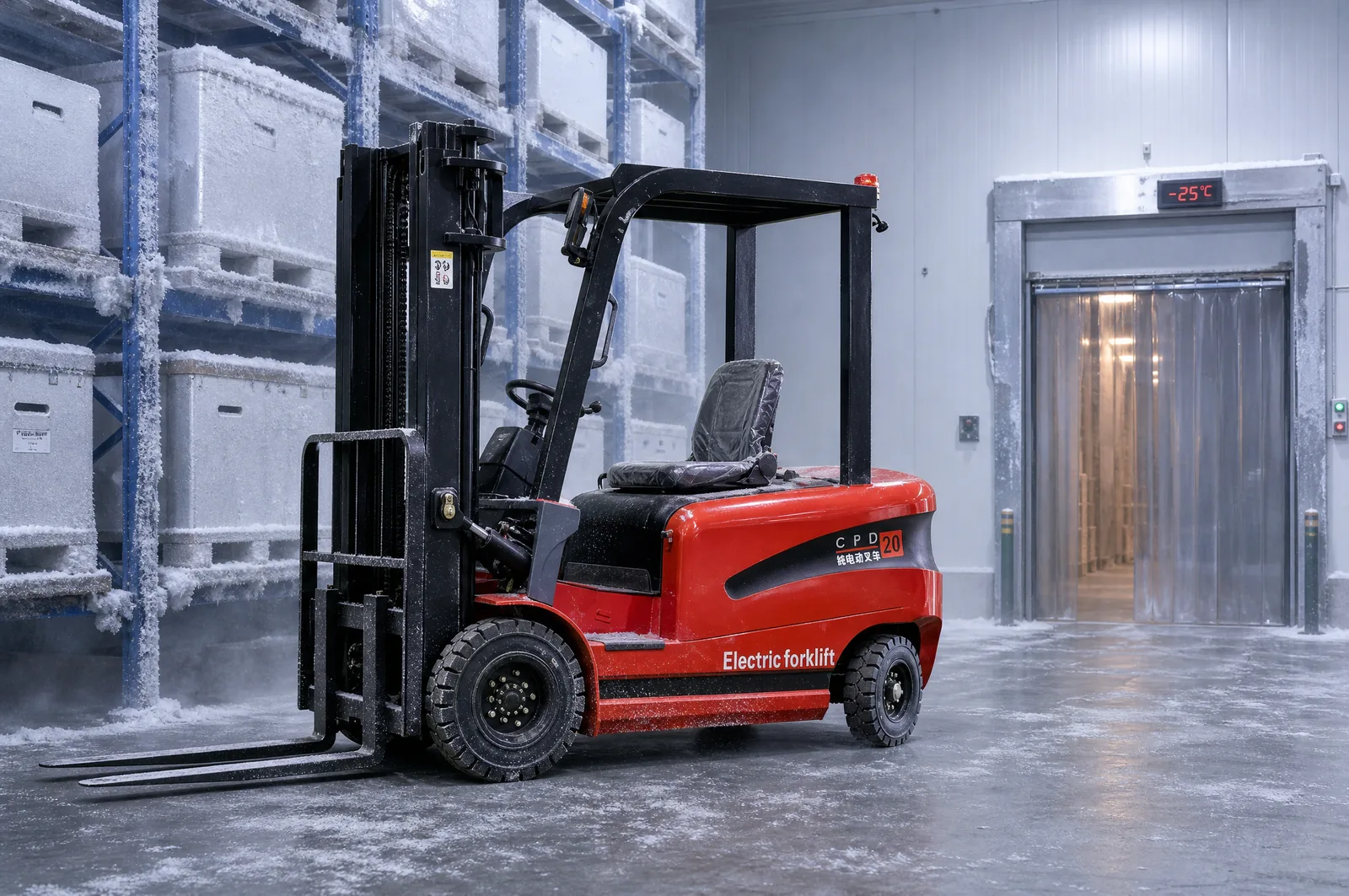

MS-25 in service
Representative environments for this class of machine. Photographed on location, not in a studio.
Specification
| Model | MS-25 |
|---|---|
| Standard designation | CPD-25 |
| Rated capacity | 2.5 t |
| Lift height | 3,000 mm standard; 4,500 / 6,000 mm optional |
| Service weight | 3800 kg |
| Battery | 48 V / 600 Ah lead-acid or 48 V 400 Ah Li-ion |
| Tyres | Solid rubber 28×9-15 (front) / 6.50-10 (rear) |
| Turning radius | 2095 mm |
| Length | 3525 mm to fork face |
| Width | 1140 mm |
Figures are the standard build. Mast, fork length, attachment, battery and paint are fixed at order; anything not on this table is quoted rather than assumed.
What MS-25 is bought for
Four-wheel, 2.5 t. For loads that sit between pallet and stillage. Frequently chosen where a 2.0 t truck is marginal on residual capacity at height.
If the load is consistently heavier than 2.5 t, the next frame up carries the same mast and fork family, so the attachment and spare-parts stock do not have to change. If the load is lighter but the access is the constraint, the frame below is the one that fits through the door — capacity is rarely the only variable.
The size above and below
MS-30 · 3 t
Electric Forklift 3 t
Four-wheel, 3.0 t. The smallest truck in the range that comfortably handles a 1,200 mm pallet at a 600 mm load centre without derating.
Compare MS-25 vs MS-30Wear parts for MS-25
The parts that fail first on this class, with the interval we see in the field.
Customer feedback
We publish feedback only with the buyer's permission and only when it is attributable — no anonymous quotes. If you would like to speak to someone running this class of machine, ask for a reference and we will arrange the call with their consent.
Quote for MS-25
Send the load, the lift height and the destination port. You get the model, the mast, the attachment and a written price.
