CPC(D)20 · 2 t
Diesel Forklift 2 t
2.0 t. The volume seller in most export markets: cheap to buy, cheap to service, and every local mechanic knows the engine.
Compare CPC(D)15 vs CPC(D)20
CPC(D)15 · Diesel Forklift
CPC(D)15 — 1.5 t Diesel Forklift
1.5 t internal combustion. Smallest diesel in the range; bought where a site has no charging infrastructure at all.
1.5 t
Capacity
Xinchai C490BPG, 36.8 kW, Stage V
Engine
3,000 mm standard; 4,500 / 6,000 mm optional
Lift height
2485 mm
Turning radius

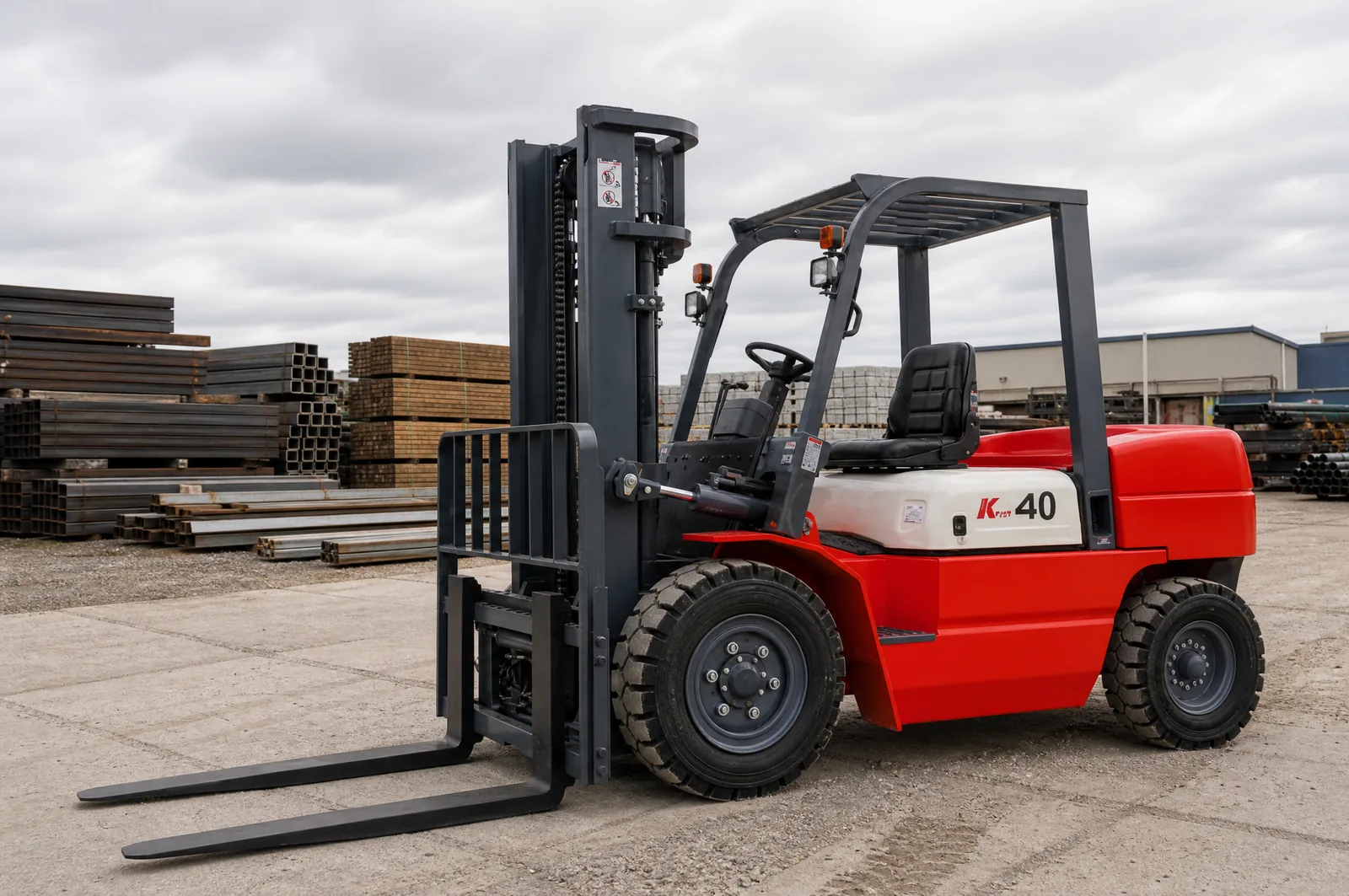

15/01-yard.webp)
CPC(D)15 in service. More photographs below.
CPC(D)15 in service
Representative environments for this class of machine. Photographed on location, not in a studio.

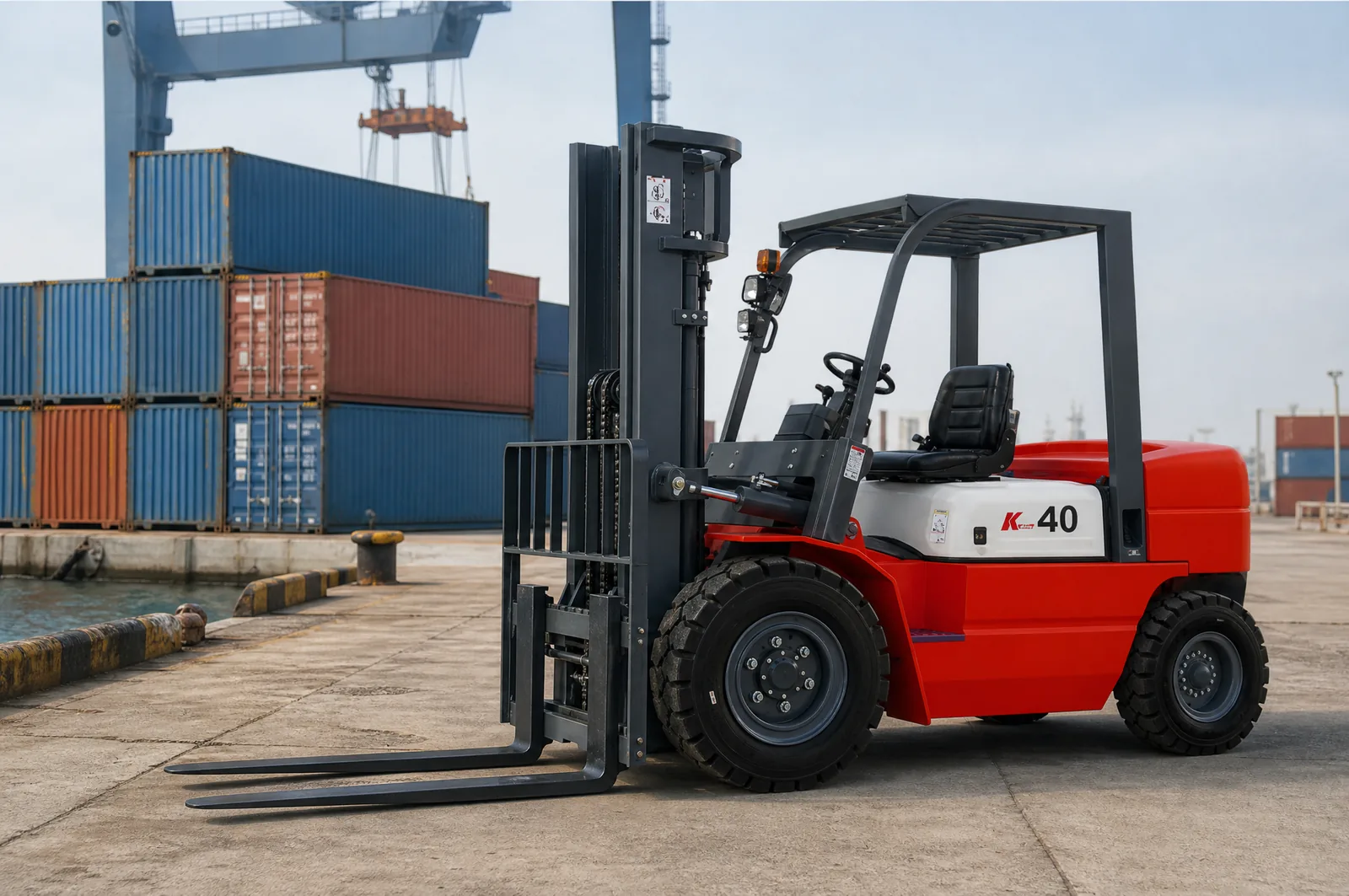

15/02-port.webp)

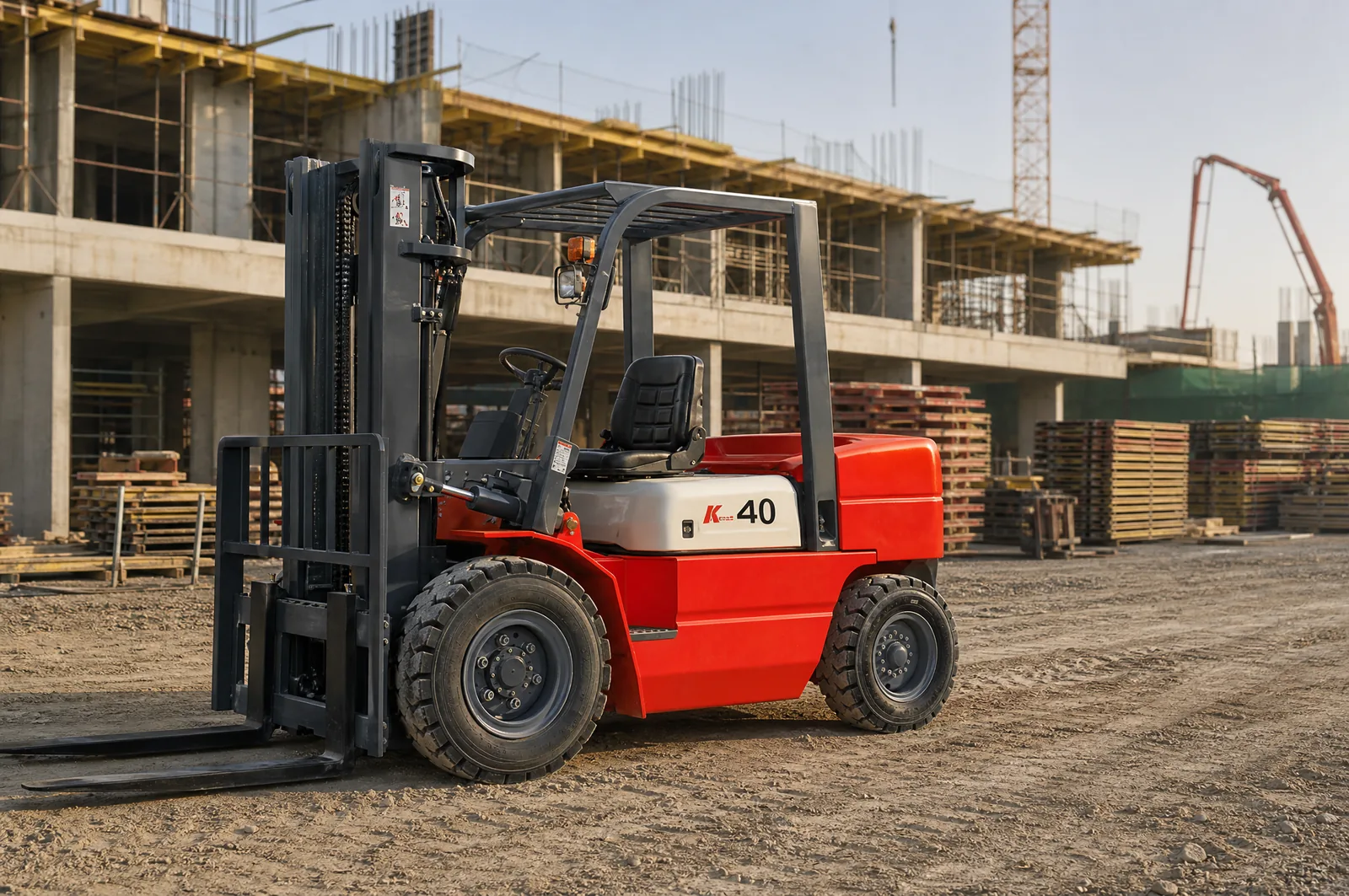

15/03-construction.webp)

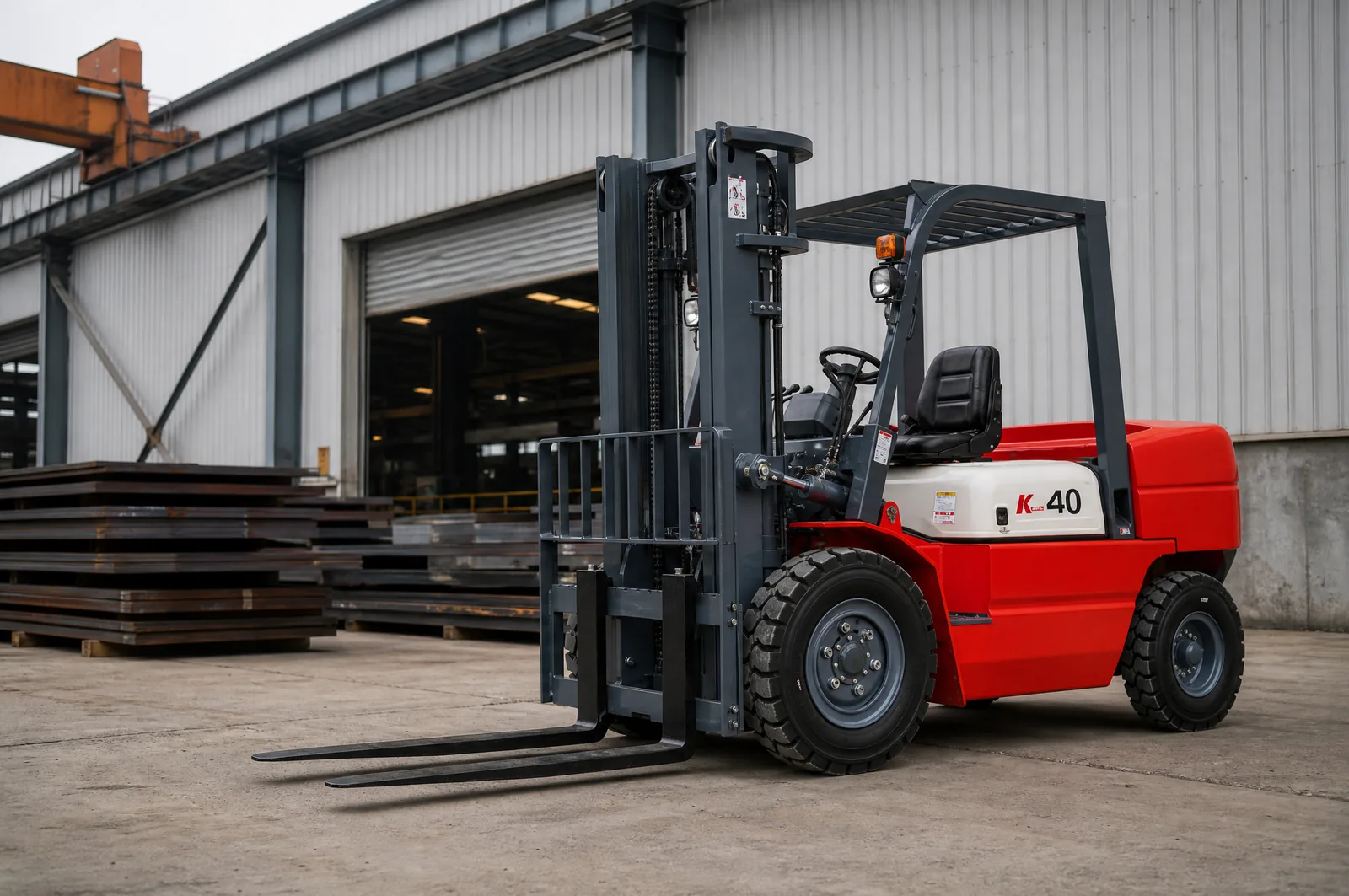

15/04-factory.webp)

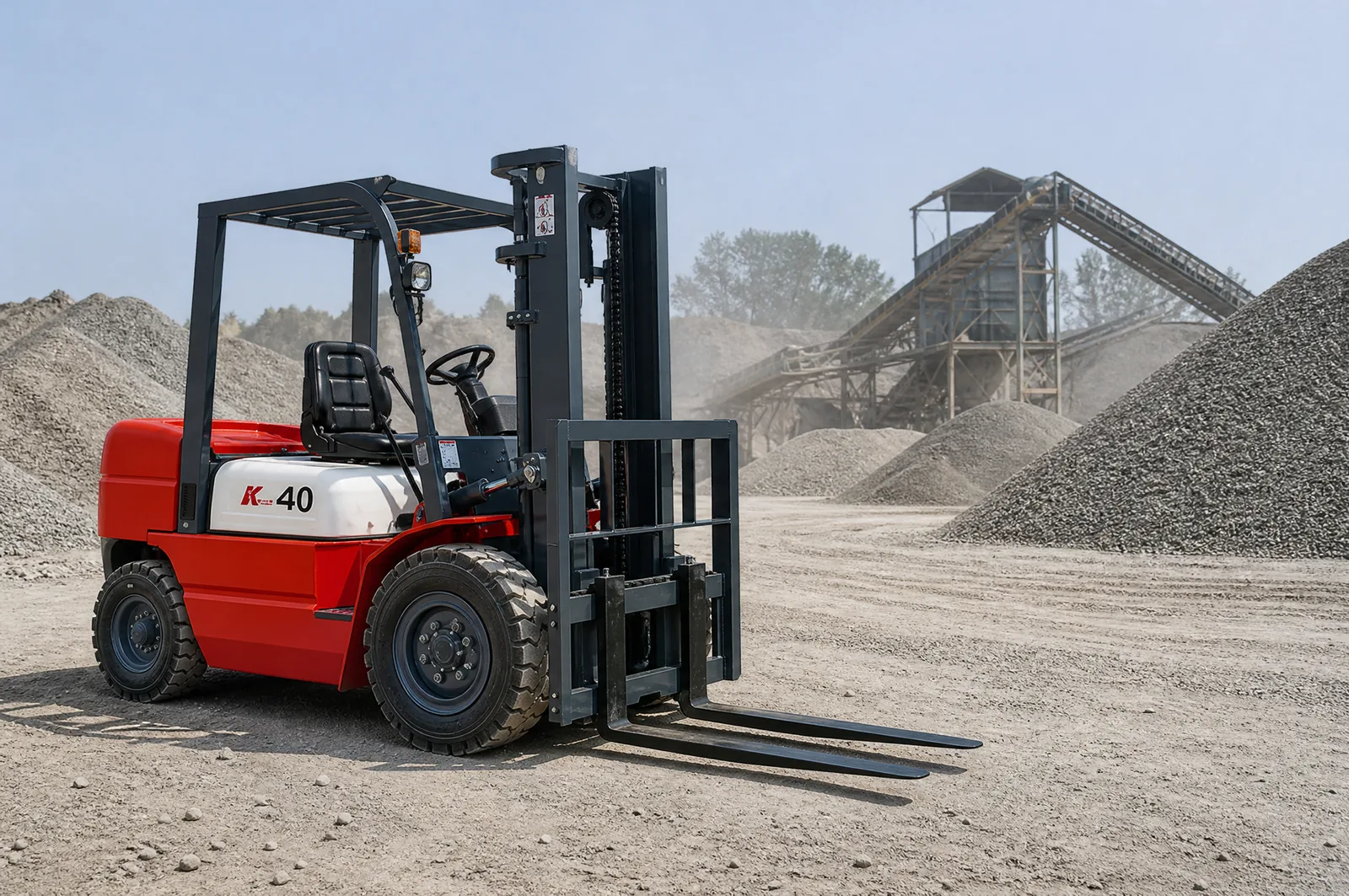

15/05-quarry.webp)
Specification
| Model | CPC(D)15 |
|---|---|
| Standard designation | CPC(D)-15 |
| Rated capacity | 1.5 t |
| Lift height | 3,000 mm standard; 4,500 / 6,000 mm optional |
| Service weight | 3880 kg |
| Engine | Xinchai C490BPG, 36.8 kW, Stage V |
| Tyres | Pneumatic 7.00-12 (front) / 6.00-9 (rear) |
| Turning radius | 2485 mm |
| Length | 3885 mm to fork face |
| Width | 1230 mm |
Figures are the standard build. Mast, fork length, attachment, battery and paint are fixed at order; anything not on this table is quoted rather than assumed.
What CPC(D)15 is bought for
1.5 t internal combustion. Smallest diesel in the range; bought where a site has no charging infrastructure at all.
If the load is consistently heavier than 1.5 t, the next frame up carries the same mast and fork family, so the attachment and spare-parts stock do not have to change. If the load is lighter but the access is the constraint, the frame below is the one that fits through the door — capacity is rarely the only variable.
The size above and below
Wear parts for CPC(D)15
The parts that fail first on this class, with the interval we see in the field.
Customer feedback
We publish feedback only with the buyer's permission and only when it is attributable — no anonymous quotes. If you would like to speak to someone running this class of machine, ask for a reference and we will arrange the call with their consent.
Quote for CPC(D)15
Send the load, the lift height and the destination port. You get the model, the mast, the attachment and a written price.
